Now available for pre-order

MTP40

40 kVA three-phase microturbine power - now taking orders

The MTP40 takes everything that makes the MTG12 work on remote sites and scales it to three-phase 40 kVA. 32 kW prime, 44 kVA standby, 200% short circuit capability for motor starting, and the same one-service-a-year, multi-fuel operating model. Order books are open and delivery slots are being allocated now.

New to the technology? What a microturbine is and how it works explains the cycle, the single moving part and the air bearing before you read the specification.

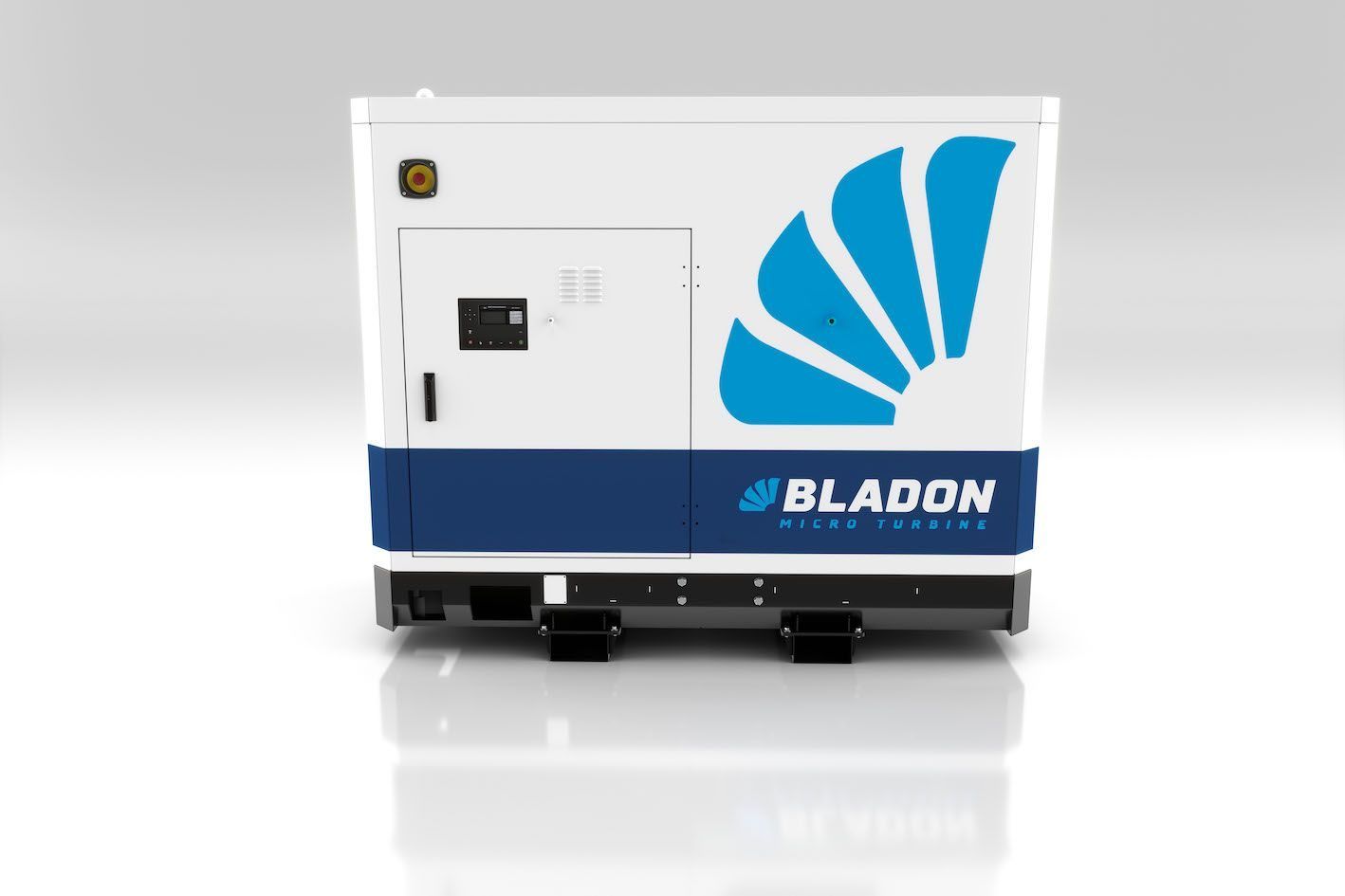

Bladon MTP40 40 kVA three phase microturbine genset
40 kVA
3ph

Three phase

44 kVA

Standby power

200%

Short circuit

MTP40 full specification

Power output40 kVA / 32 kW prime, 44 kVA standby
PhaseThree phase
Voltage380 to 415 V three phase
Engine speed50,000 to 120,000 RPM
CoolingSealed for life water glycol mixCoolant circuit with a water-cooled alternator, sealed for life water glycol mix
LubricationAir bearings - no oil required
Moving parts1 moving part
Short circuit capability200% short circuit capability
Noise60 dB(A) at 7 m and 85 dB(A) at 1 mdesign target, not yet verified by test. Measured at 10 m in free-field conditions, per the product datasheet.
Ambient temperature-20°C to +50°CSubject to the Cold Pack or Hot Pack kit, with output de-rating for altitude and temperature above ISO 8528 standard reference conditions.
Rated condition25°C
EmissionsExceeds EU Stage V emissions limits
Service intervalOne service visit per year
Design life45,000 hours
Warranty12 months / 8,760 hours
Monitoring24/7 remote monitoring
Weight1,400 kg
Rating and ambient conditions
  • Operating range: -20°C to +50°C.
  • Subject to the Cold Pack or Hot Pack kit, with output de-rating for altitude and temperature above ISO 8528 standard reference conditions.
  • Rated condition: the MTG12 is rated at 15°C (ISO standard reference conditions). The MTP40 is rated at 25°C.
  • Low temperature: a Cold Pack kit is available for operation at the low end of the range.
  • High temperature: a Hot Pack kit is available, and output de-rating applies at the top of the range, in line with normal turbine practice.
  • High temperature: an alternative battery specification may be recommended for sustained high-ambient operation.
  • Reference conditions: ISO 8528 standard reference conditions are 15°C, 1,013 mbar and 60% relative humidity.

Fuel compatibility

The MTP40 runs every fuel below on the same machine, with no hardware change and in any blend ratio. Switch fuel as price, supply and regulation move - the service interval and design life do not change.

Diesel
Kerosene
Paraffin
HVO
FAME biofuel

Gaseous fuels - biogas, lpg, natural gas, flare gas, hydrogen, ethanol, bioethanol - are in active development, enabled by the modular combustor architecture.

Applications and target sectors

Sites drawing roughly 12 kW to 32 kW continuous, or needing three-phase supply.

  • Multi-tenant telecom tower sites and macro hubs
  • Forward operating bases and larger field camps
  • Larger commercial and industrial loads needing three-phase
  • Oil & gas production pads and gathering stations
  • Water treatment, rural broadband exchanges and utility substations
  • Motor-starting duty where short circuit capability matters

Key advantages

Three-phase 380 to 415 V output for industrial and multi-tenant loads
200% short circuit capability for confident motor starting
44 kVA standby headroom above 40 kVA prime rating
Same multi-fuel operation - diesel, kerosene, paraffin, HVO or FAME biofuel
One service visit per year and a 45,000 hour design life
Sealed water glycol cooling for sustained output in high ambient temperatures
Minimal vibration - no reciprocating motion

Also in the range

MTG12 - 12 kVA multi-fuel microturbine genset

In production - available now. Sites drawing up to roughly 12 kW continuous.

See the MTG12

Pre-order the MTP40

Tell us your site load, fuel availability and timeline. We will confirm sizing and allocate a delivery slot.

Reserve your MTP40 delivery slot

The MTP40 is now available for pre-order. Tell us about your sites and we will confirm your place in the delivery schedule and the commercial terms.

MTP40 questions

How does ambient temperature affect output?

Both units operate across -20°C to +50°C, subject to the Cold Pack or Hot Pack kit. Each unit has its own rated condition: the MTG12 is rated at 15°C (ISO standard reference conditions), and the MTP40 is rated at 25°C. Separately, ISO 8528 standard reference conditions are defined as 15°C, 1,013 mbar and 60% relative humidity, and output de-rating applies for altitude and for temperature above those reference conditions. An alternative battery specification may be recommended for sustained high-ambient operation. Tell us your site conditions and we will confirm the rating you can expect.

What fuels can the MTP40 run on?

Diesel, kerosene, paraffin, HVO, FAME biofuel, and blends of these in any ratio. No hardware change is needed to switch between them, and performance, service interval and design life are unchanged.

How often does the MTP40 need servicing?

One service visit per year. There is one moving part and no oil to change - the unit runs on air bearings - against a diesel genset's typical monthly or 300 run-hour interval.
